INPUT

Voltage Range

190 - 265VAC

Frequency Range

50 - 60Hz

OUTPUT

Voltage (AC Mode)

27.6V ±2%

Voltage (Battery Mode)

Same as battery voltage

Rated Current

2.5A

Rated Power (Max.)

80W (with 400mA charge current)

Efficiency (Typ.)

>85%

Ripple & Noise

<240mVp-p

Output Channel

1 channel

CHARGING

Voltage

27.6V ±2%

Current

400mA Max

PROTECTION

Input

2A / 250VAC fuse

Overload

3A ±5%, Hiccup mode, recovers automatically after fault condition is removed.

Over Voltage

30V ±5%, Hiccup mode, recovers automatically after fault condition is removed.

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Battery Low Voltage

21V ±2%, PSU shuts down until AC power recovers.

Battery Reverse Connect

Battery not works, no effect on main output.

ENVIRONMENT

Temperature

Working: -20 - 50℃

Storage: -30 - 80℃

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

LED INDICATOR

Red

On

AC power is on

Green

On

DC output is on

Yellow

On

Battery is fully charged

Flickering

Battery is charging

SAFETY & EMC

EMC Standards

EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013

LVD Standards

EN 62368-1-2014-A11-2017

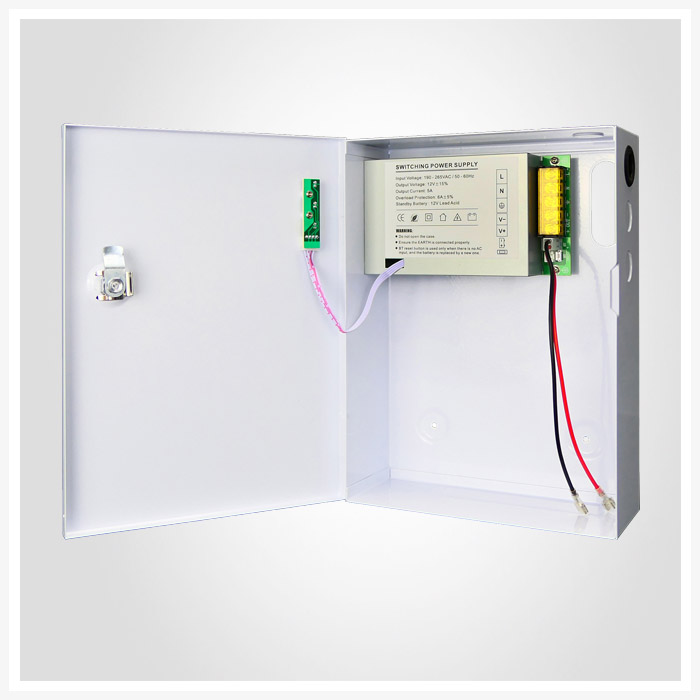

METAL BOX & PACKING

Metal Box

265 x 195 x 75mm, fits for 2 pcs 12V 5Ah batteries.

Packing

42.5 x 39.5 x 30cm / CTN, 16kg / CTN, 10pcs / CTN
