12V 10A/24V 5A/48V 2.5A/36V 3.3A/5V 15A/19V 6.2A

Eg:24V 5A

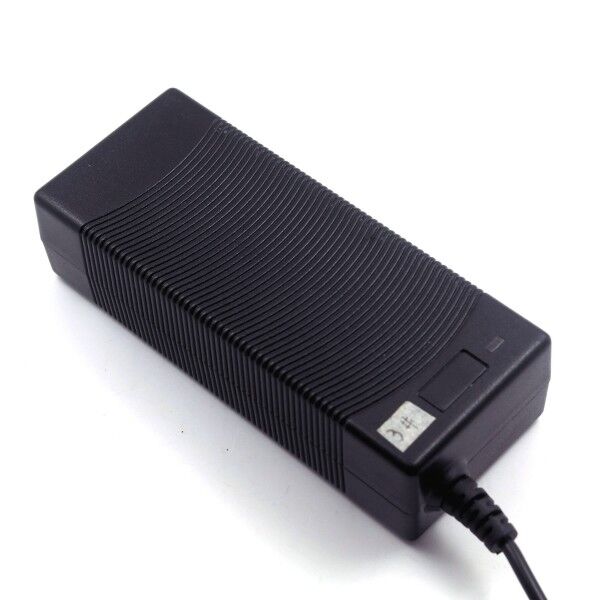

120W Series desktop type Switching power supply, 24VDC 5A switching power adaptor, Class II, Universal input, customized design.

MODEL NUMBER: SD-2405000D

"XXX"=240, The output voltage is DC24V,

"YYY"=400, The output current is 4A,

"Z" representing the input plug, 0-European plug, 1-British plug, 2-the Australian plug, 3-USA plug, 4-Japan plug, 5-China plug, 6-Korea plug.

"Z"=desktop type power adapter

IEC 8 IEC 7 IEC14

Features:

High reliability

High efficiency

Lightweight and convenient plug-in

Light and convenient plug in

With fuse, LED light indicator

low working temperature and low ripple noise

Emission and immunity:

EN55024/A1:2001

CISPR22 class B

CNS13438 class B

FCC part15 class B

EN55022 class B

AS/NZS3548, AS/NZS4251.1 class B

IEC61000-4-2; IEC61000-4-3

IEC61000-4-4; IEC61000-4-5

IEC61000-4-6; IEC61000-4-11

GB9254-1998/GB17625.1-2003

Input specifications:

Input voltages: 100to 240V AC, 50/60Hz

input current: 3A maximum

No load input power (240V AC): 0.5W

Inrush current (240V AC): 30A cold 25°C

Efficiency: 88% minimum

Power cords: EU/VDC (EU), US (North America), PSE (Japan), SAA (Aust/NZ), BS (UK/HK), Brazil, South Africa, CCC (China), EK (Korea) and more

Output specifications:

Output Power: 120W

Voltage: DC24V

DC output voltages:

From 12V DC to 18V DC

From 19V DC to 24V DC

From 24V DC to 48V DC

DC output current:

From 0mA to 4,000mA

Ripple and noise: 100mV

Output voltage precision: 5%

Regulation: ±1% line, ±5% load

DC output cord AWG: 18AWG, normal

Reliability:

Burn-in: 100% full load, 40°C, 4 hours minimum

Leakage current: 0.25mA maximum at 264V AC

Withstanding voltage(hi-pot): (3kV 1 minute 10mA maximum, between primary and secondary)

MTBF: meet MIL-HDBK-217F over 50K hours, full load and 25°C

Inrush current: 50A (maximum) at 240V (15A at 90V AC, 18A at115V AC, 31A at 230V AC, and 33A at 264V

Safety approvals:

UL1310, GB4943-2001

CE(Low Voltage Directive)

PSE IEC60950, EN60065

EN60950:2009; EN60065

AS/NZS 60950:2000, AS/NZS60065

Compliant with the RoHS Directive

UL, CUL, ETL, CETL, GS, CE, TUV, LVD, EMC, FCC, CCC, PSE, CB, C-tick, SAA, PCT, ROHS, PAHS and so on

Protections:

Over temperature protection

Over-current protection

Over-voltage protection

Short-circuit protection

Thermal shutdown capability

Description:

Customized designs are accepted

Design time: 5 working days maximum

Applications: printer, POS machine, consumer product, electronic product and more

General:96W dasktop type Switching power supply or switching power adapter for your collection
